51 41... Replacing speaker cover (mid-range speaker) on left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL
Remove MID-RANGE SPEAKER

Remove plastic welded joints (1) on speaker cover (2) completely.

Installation note:

Speaker cover (2) can only be installed in one position.

Fig 1: Identifying Plastic Welded Joints And Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Attach speaker cover (1) to door trim panel.

Secure clamps (3) to plastic guides (2) so that speaker cover (1) rests fully on door trim panel.

NOTE: Shorten protruding plastic guides (2) by measurement (A).

(A) = 2 mm

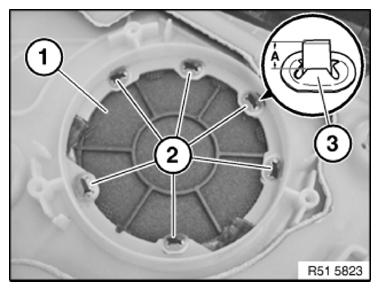

Fig 2: Attaching Speaker Cover

Courtesy of BMW OF NORTH AMERICA, INC.
