51 41... Punching in the contour for the seat memory switch

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Use special tool 51 4 109 to punch in holes in marked locations on door panel (1).

Fig 1: Removing Rear Door Trim Panel

G09879471

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Special tools 51 4 114 and 51 4 115 must be used as cutting implements for punching work on the F07

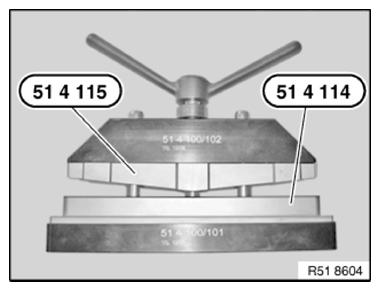

Fig 2: Cutting Implements For Punching Work

G09879472

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If cutting tool (2) is changed, proceed with the punching tool (1) closed and while using special tool 51 4 112 (risk of damage).

Fig 3: Identifying Special Tool (51 4 112)

G09879473

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 101 Slide special tool through holes stamped into door trim panel (1).

NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.

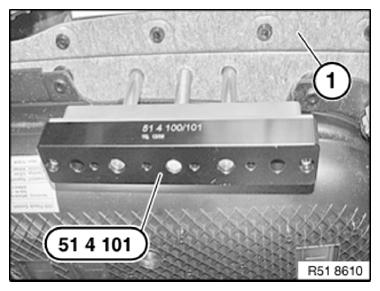

Fig 4: Identfying Guide Pins Of Punching Tool

G09879474

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 105 Mount special tools and on punching tool 51 4 106 (1).

Compress punching tool (1) via spindle.

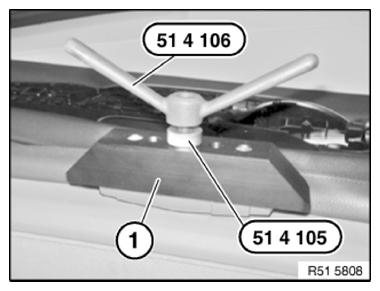

Fig 5: Compressing Punching Tool

G09879475

Courtesy of BMW OF NORTH AMERICA, INC.

51 4 111 Press punching remnants with special tool from rear out of punching tool.

NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.

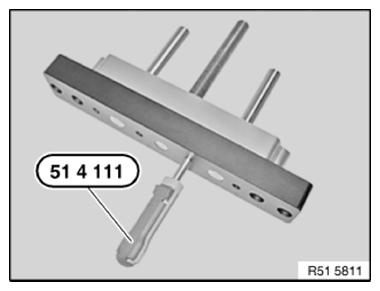

Fig 6: Pressing Punching Remnants

G09879476

Courtesy of BMW OF NORTH AMERICA, INC.
