51 21... Removing weather strip with special tool 00 9 324 at front or rear

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Open side window completely.

Front door:

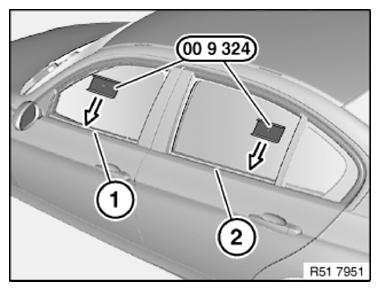

Insert special tool 00 9 324 at front (at A-pillar) in window cavity (1) (TOP label pointing upwards).

Rear door:

Insert special tool 00 9 324 at rear (at C-pillar) in window cavity (2) (TOP label pointing upwards).

Fig 1: Inserting Special Tool (00 9 324) At Front In Window Cavity

Courtesy of BMW OF NORTH AMERICA, INC.

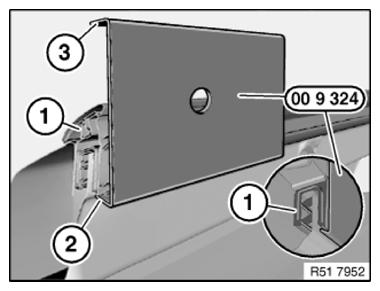

NOTE: For purposes of clarity, graphic shows inner door panel and side window removed.

Special tool 00 9 324 must be correctly guided under weather strip (1).

2 Short leg, bottom

3 Long leg, top (TOP)

Fig 2: Removing Inner Door Panel And Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start at the front or rear, depending on the model.

IMPORTANT: Risk of damage!
Raise weather strip (3) no more than 5 mm in each levering operation, otherwise the strip will be bent.

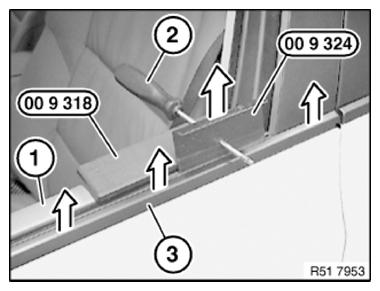

Position special tool 00 9 318 on door trim panel (1).

Slide suitable tool (2) through hole of special tool 00 9 324 and in this way lever weather strip (3) in an upward direction by max. 5 mm.

Fig 3: Positioning Special Tool (00 9 318) On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Guide special tools 00 9 324 and 00 9 318 forward and backward step by step until weather strip (3) is fully removed.
