51 21 170 Removing and installing or replacing outer door handle from left or right front door

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Graphics used come from the F01.

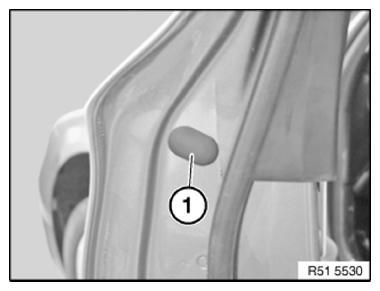

Lever out seal plugs (1).

Fig 1: Identifying Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

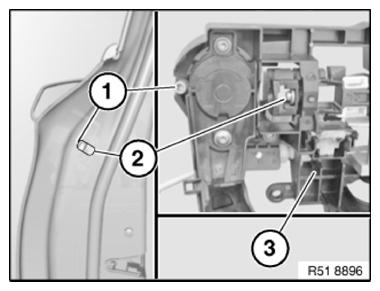

Release clamping bolt (2) from the support for the outer door handle (3).

Fig 2: Identifying Clamping Bolt From Support For Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

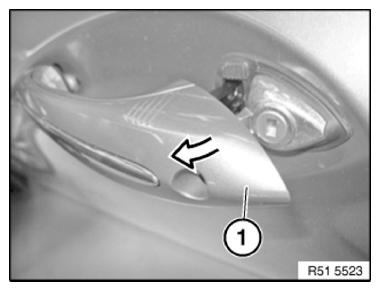

Feed out the rear outer door handle (1) in direction of arrow.

Swivel the outer door handle (1) further in direction of arrow and feed it out at front.

Fig 3: Removing Rear Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

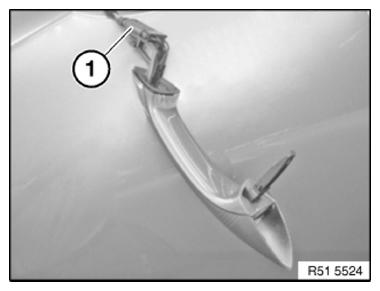

Unlock plug connections (1) and disconnect.

Fig 4: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
