51 21 003 Replacing door detent (lock striker), front left or right
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

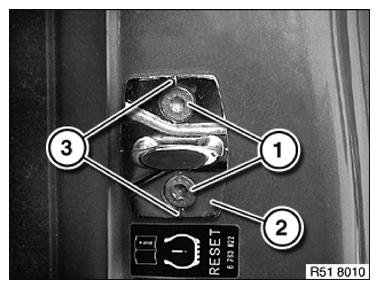

Release screws (1) and remove door detent (2).
Installation note:
If necessary, carry out basic adjustment by way of notches (3) on door detent (2) and B-pillar.
Tightening torque 51 21 2AZ .
After installation
Adjust door detent. See ADJUSTING FRONT LOCK STRIKER and ADJUST DOOR .
