51 11... Removing and installing/replacing holder for side view camera on left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove SIDE VIEW VIDEO CAMERA
Pull side view video camera holder off bumper with a suitable tool (holder is secured with double-sided adhesive tape).

Installation:

Holder (1) is encoded against incorrect installation.

Identification (2) indicates on which side of the vehicle holder (1) is stuck in.

For installation position observe shape of holder (1).

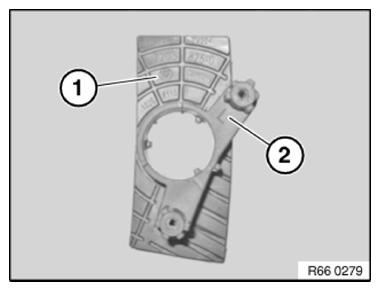

Fig 1: Identifying Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface on bumper trim (4) and remove adhesive residues.

To position holder (1) optimally, pre-install camera (3) on holder (1) before sticking in the holder.

Outer edge (2) on holder (1) must be flush with outer bumper edge (4).

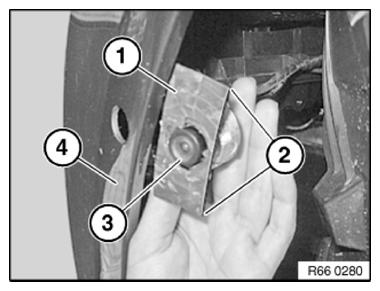

Fig 2: Identifying Holder, Camera And Outer Bumper Edge

Courtesy of BMW OF NORTH AMERICA, INC.
