51 11 050 Removing and installing/replacing support for front bumper panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER PANEL

F06/F12/F13 only:

Remove right headlight

Version with active pedestrian protection

Remove pedestrian protection sensor

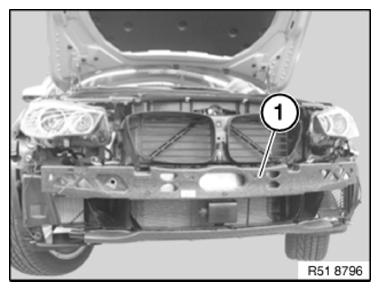

Pull off impact absorber (1) from support.

Installation note:

Connect bottom of impact absorber (1) to support, then press on at top.

Fig 1: Identifying Impact Absorber From Support

Courtesy of BMW OF NORTH AMERICA, INC.

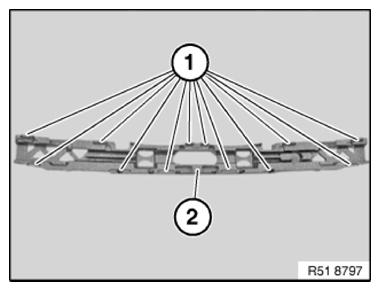

IMPORTANT: Damage to retaining lugs (1) on impact absorber (2) is to be avoided!
For version with active pedestrian protection, impact absorber (2) is not to reused

Fig 2: Identifying Retaining Lugs And Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

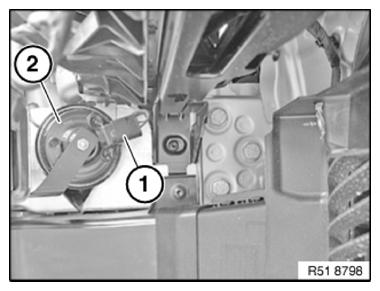

Disconnect connector connections (1) from fanfare horn (2) on left and right.

Fig 3: Identifying Connector Connections From Fanfare Horn

Courtesy of BMW OF NORTH AMERICA, INC.

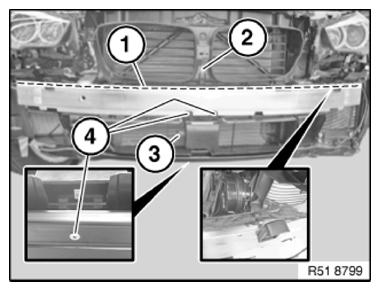

Unclip wiring harness along marking (1).

If necessary, drill out blind rivet (2).

Version with ACC:

Unfasten plug connection (3) and disconnect.

Drill out blind rivets (4).

Fig 4: Identifying Plug Connection, Blind Rivets And Wiring Harness Marking

Courtesy of BMW OF NORTH AMERICA, INC.

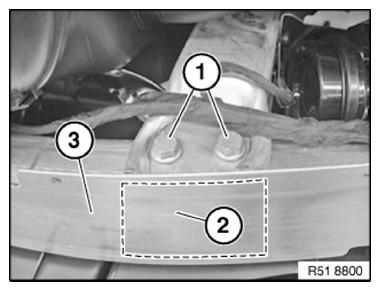

Release screw connection (1) on support (3).

Tightening torque 51 11 4AZ .

Installation note:

Renew self-locking screws/nuts.

Correctly install reinforcement plate (2) on left within the support.

Fig 5: Identifying Screw Connection, Support And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

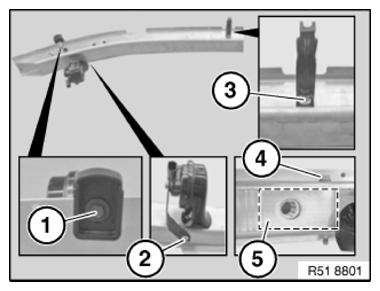

Reposition adapter plates (1) and plastic nuts.

Reposition holder for fanfare horn (2).

Modify holder (3).

Release screw connection (4) from reinforcement plate (5).

Tightening torque 51 11 4AZ .

Reposition reinforcement plate (5).

Installation note:

Fig 6: Identifying Adapter Plates, Screw Connection And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replace self-locking screws.

Only apply screw connection (4) after installation of support on deformation element.
