51 31... Window glass removal with wire pull handle

Special tools required:

• 2 150 267

Attention!

Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).

Attention!

Follow the vehicle-specific repair instructions!

Protect inner and outer working area (body, trim panels, cables etc.) against damage.

Depending on the area of application, a SEPARATING CORD  can also be used as an alternative to wire.

Using the separating cord prevents any damage to the body.

Do not pull the separating cord over any sharp edges (risk of tearing)!

Used tool:

• WIRE PULL HANDLES
• Dashboard protection
• Wire starter (special tool 2 150 267)

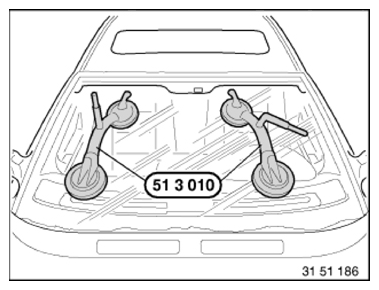

Use suction cups (51 3 010) to lift out the window glass.

Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.

Secure window glass (if necessary with adhesive tape) against falling out.

Fig 1: Securing Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Pulling cutting wire into vehicle

• Grip wire with pliers

  (If access is difficult: using wire starter 2 150 267, feed wire through adhesive bead.)

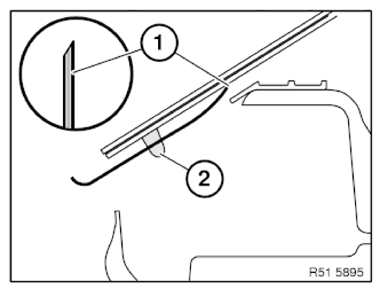

• Wire end (1) must be bent towards window glass.
• Heat wire end (1) and use it to pierce adhesive bead (2).
• Pull approximately half of the wire into the passenger compartment
  Fig 2: Identifying Pierce Adhesive Bead And Wire End

  Courtesy of BMW OF NORTH AMERICA, INC.

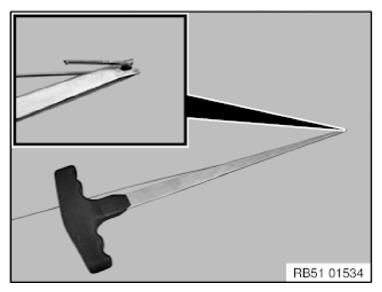

Using wire starter

Bend wire end approx. 10 mm and insert in notched tip.

Pierce wire starter with uniform pressure through adhesive bead, wire end (bent part) must be positioned on window glass.

Fig 3: Inserting Notched Tip

Courtesy of BMW OF NORTH AMERICA, INC.

Attach wire pull handles

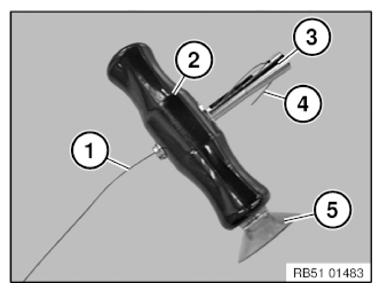

Feed in cutting wire (1) in cutting handle (2) and clamping element (3) as illustrated.

Move back cutting handle (2) over clamping element (3) and trap wire end (4).

Danger of injury!

Wire end (4) must not protrude out of cutting handle (2).

Fig 4: Securing Suction Cup

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting handle (2) can be secured with suction cup (5) to the vehicle window or body during each of the work operations. This prevents damage to the paint.

Fit second wire pull handle to other wire end.

Perform repair work with the aid of a second person.

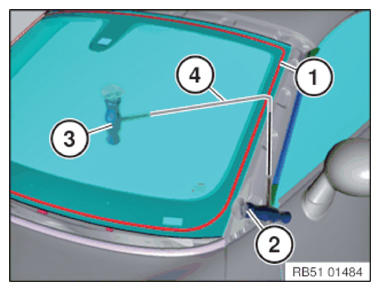

Cutting wire (4) must be guided in cutting direction at an acute as possible angle (>45°) to adhesive bead (1).

Cut through adhesive bead (1) by pulling cutting handle (2) and at the same time providing counter support with cutting handle (3).

Pull back cutting wire (4) with cutting handle (3) and make sure that cutting wire (4) is always held under tension.

Cut through remaining adhesive bead in the same way.
