51 31... Removing windows with an oscillating knife

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on vehicles with airbag systems (risk of injury). See SAFETY PRECAUTIONS/GENERAL INFORMATION and SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

IMPORTANT: Handle sharp-edged tools with care (risk of damage to the head airbag and the window glass).

IMPORTANT: Follow the vehicle-specific repair instructions!
Always wear safety goggles and protective gloves for your own safety.
Cover the working area (side walls, roof-mounted aerial and if necessary interior equipment) with protective covers.
Tape off body with fabric adhesive tape (e.g. Tesa) in areas where the oscillating knife could damage the window glass or the paint.

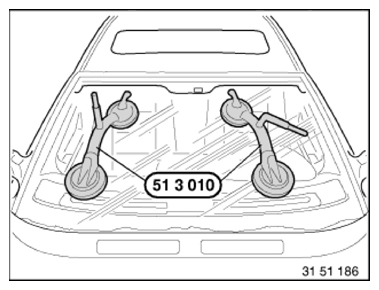

Use suction cups (51 3 010) to lift out the window glass.

Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.

Secure window glass against falling out.

Fig 1: Securing Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

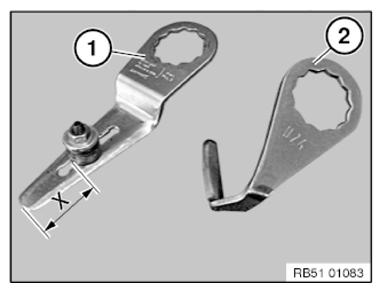

Depending on the area of application, knife 1 or 2 is used.

Straight knife with adjustable thrust roller
U-shaped knife

Dimension (X) on the knife (1) can be adjusted individually, see vehicle-specific service information.

NOTE: Sharpen knife blade before every use on a running machine with a grinding stone (even with new knife blade).

Fig 2: Identifying Dimension On Knife

Courtesy of BMW OF NORTH AMERICA, INC.

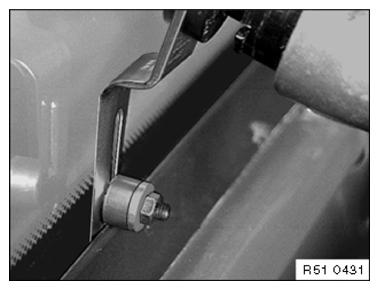

Removing from the inside

Guide knife carefully between body and window glass.

Run blade of knife parallel to glass.

Take care not to damage paintwork.

Cut through adhesive bead all the way around.

Pull window glass outwards to remove.

Fig 3: Identifying Blade Of Knife Parallel To Glass

Courtesy of BMW OF NORTH AMERICA, INC.

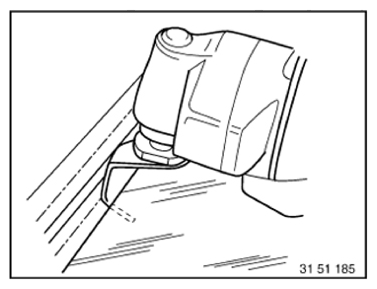

Removal from outside

Guide knife carefully between body and window glass.

Run blade of knife parallel to glass.

Take care not to damage paintwork.

Cut through adhesive bead all the way around.

Pull window glass outwards to remove.

Fig 4: Pulling Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

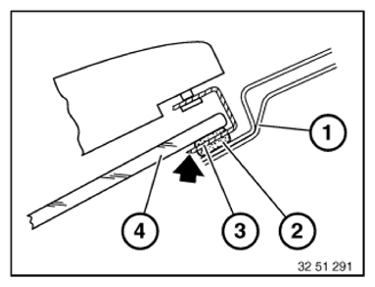

Cut through adhesive bead as closely as possible to window glass.

Body opening
Adhesive bead
Knife
Window

Fig 5: Locating Knife And Adhesive Bead
Courtesy of BMW OF NORTH AMERICA, INC.
