51 31 310 Removing and installing upper rear lid cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 010

Necessary preliminary tasks:

Remove TRIM PANEL FOR REAR LID AT TOP

Unscrew nuts (3).

Tightening torque 51 71 1AZ .

Unfasten screws (2).

Tightening torque 51 71 1AZ .

Close rear lid (4) and unclip clips (1). Remove rear lid cover.

IMPORTANT: Carefully remove cover in upward direction from rear lid (4) (with aid of a 2nd person) and place on a clean surface.

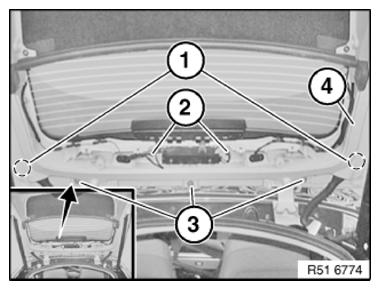

Fig 1: Identifying Nuts, Rear Lid And Clips

G09879338

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (3), slider (1) and bump stop (4) must not be damaged.

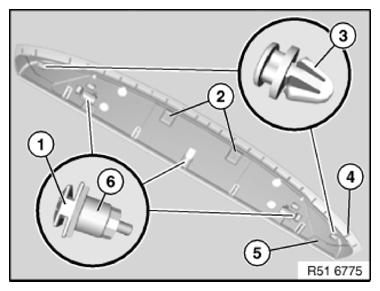

Fig 2: Identifying Clips And Bump Stop

G09879339

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out height adjustment (A) of rear lid cover (5) via 16 mm WAF adjusting screws (6) (bihexagonal).

Make sure there is a uniform gap all round.

Measure under-protrusion with special tool 51 0 010 :

A 1±1 mm

B 5±1 mm

X 1...4 mm

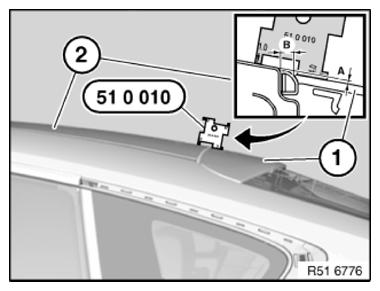

Fig 3: Adjusting Height Of Rear Lid Cover

G09879340

Courtesy of BMW OF NORTH AMERICA, INC.
