51 31 242 Replacing rubber frame (bottom) for rear window

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 300

Observe NOTES for securing components with adhesive tape.

Clean rear window (4) in area (3).

Pretreat adhesive area (3) of rubber frame (1) along the lower window edge and mark (2) with primer 205.

Wipe immediately with a clean cloth so as to retain primer transparency.

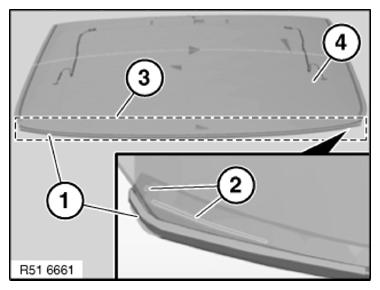

Fig 1: Identifying Rear Window, Adhesive Area And Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rubber frame (1) is positioned over center marks (2 and 3).

(2) Center mark on rear window
(3) Center mark on rear window

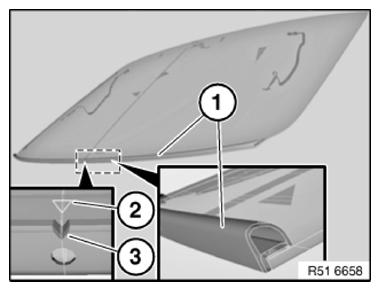

Fig 2: Identifying Rubber Frame And Center Mark On Rear Window
Courtesy of BMW OF NORTH AMERICA, INC.

Start bonding rubber frame (1) at center mark (2).

Pull off liner (5) approx. 100 mm and gently affix rubber frame (1).

Profile of lip (3) must rest correctly against edge (4) of rear window.

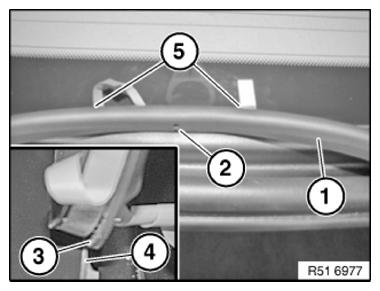

Fig 3: Identifying Bonding Rubber Frame, Liner, Edge And Lip

Courtesy of BMW OF NORTH AMERICA, INC.

Do not exert any elongation on the rubber frame when bonding.

Bond rubber frame over the full length and press down with special tool 51 0 300 .

IMPORTANT: In area (A) make sure that the rubber frame rests correctly and without bubbles on the rear window
Especially in the area of the end pieces, make sure there is a clean bonding.

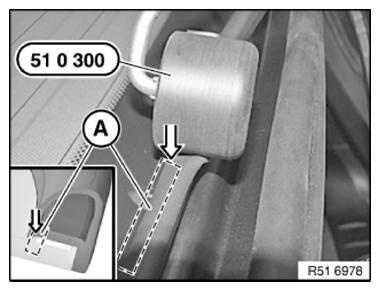

Fig 4: Locating Rubber Frame Area

Courtesy of BMW OF NORTH AMERICA, INC.
