51 31 021 Removing and installing/replacing windscreen rubber surround

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: The glass activator to pre-treat the area of the windscreen adhesive bead may not  come in contact with the adhesive area of the cover.
The bonding result of the cover is otherwise compromised.
Therefore, the cover must be installed prior to application of the glass activator.
Following INSTRUCTIONS  for bonding components with double-sided adhesive tape.

Detach cover (1).

Remove remnants of adhesive tape (2).

Clean bonding surface.

Air drying time: ≥ 1 minute

IMPORTANT: Adhesive area must be dry and free from dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

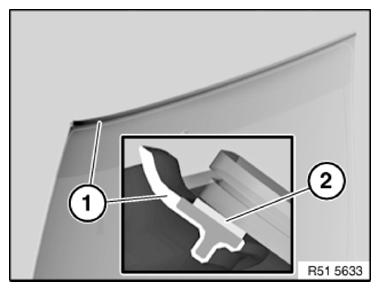

Fig 1: Identifying Cover And Adhesive Tape
G09879352Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pre-treat adhesive area with Sika-Aktivator205.

Air drying time: ≥ 1 minute

Sika Activator 205 must not get onto adhesive area of adhesive bead.

Reposition lever (1) and open special tool 51 3 320 .

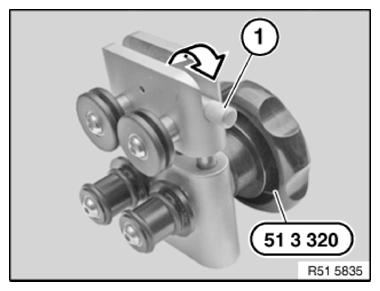

Fig 2: Removing Lever
G09879353Courtesy of BMW OF NORTH AMERICA, INC.

Pull off protective film (2) in stages from adhesive tape.

Insert cover (1) in guide pulleys (3).

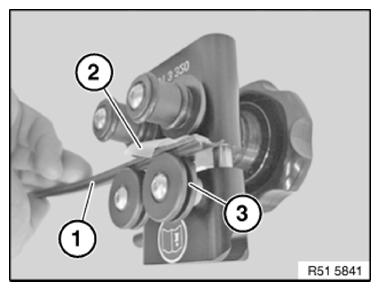

Fig 3: Pulling Off Protective Film
G09879354Courtesy of BMW OF NORTH AMERICA, INC.

Place special tool with contact rollers (1) up against window edge.

Align cover to window outer edge.

Fit cover and visually check for perfect seating.

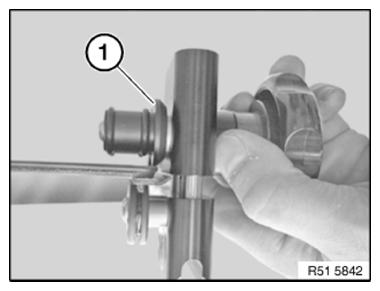

Fig 4: Aligning Cover To Window Outer Edge
G09879355Courtesy of BMW OF NORTH AMERICA, INC.

Reposition lever (1) and close special tool.

Make cover (3) is correctly seated in guide pulleys (2).

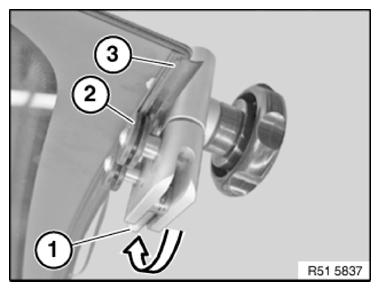

Fig 5: Positioning Lever
G09879356Courtesy of BMW OF NORTH AMERICA, INC.

Continue to pull off protective film (1) in stages from adhesive tape.

Run special tool with hand wheel over entire upper window edge.

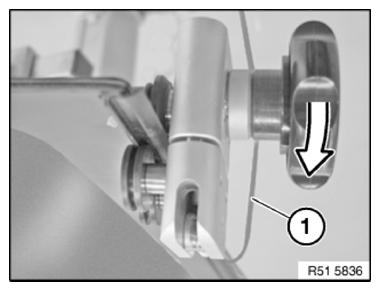

Fig 6: Pulling Off Protective Film
G09879357Courtesy of BMW OF NORTH AMERICA, INC.
