51 47... Removing and installing/replacing cargo cover (middle) trim

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

If necessary, tilt rear seat backrests forward
If necessary, fold cargo cover (middle) forwards.

Unclip lock trim (1) at marked locations and remove.

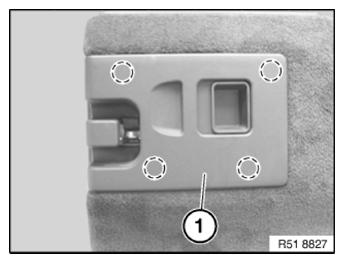

Fig 1: Identifying Lock Trim

G09879599

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining clips (2) of lock trim (1) must not be bent or broken.

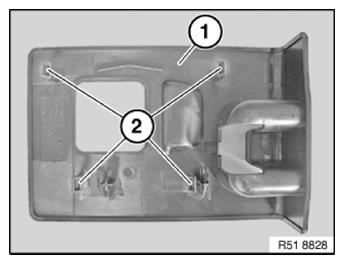

Fig 2: Identifying Retaining Clips Of Lock Trim

G09879600

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 47 8AZ .

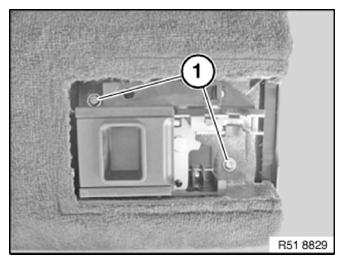

Fig 3: Identifying Screws

G09879601

Courtesy of BMW OF NORTH AMERICA, INC.

Fold cargo cover (middle) upwards.

Unhook cargo cover trim (1) towards top.

Fig 4: Removing Cargo Cover Trim

G09879602

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Plastic hooks (2) of cargo cover trim (1) must not be damaged.

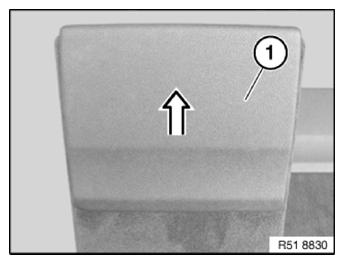

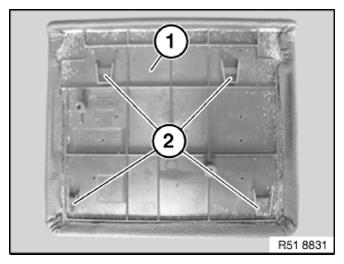

Fig 5: Identifying Plastic Hooks And Cargo Cover Trim

G09879603

Courtesy of BMW OF NORTH AMERICA, INC.
