51 47 312 Replacing footrest for front passenger compartment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR PEDAL MECHANISM .

NOTE: Footrest (1) is bonded with carpet along line (2).

Adhesive bead must remain on carpet (risk of damage).

Preheat footrest (1) with hot air blower and therefore loosen adhesive bead from footrest (1).

If necessary, tension footrest (1) with panel wedge and apply heat to pull off inwards.

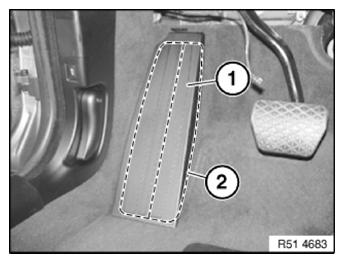

Fig 1: Identifying Footrest And Carpet Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

If required, preheat footrest (1) with hot air blower and apply adhesive bead along line (2) with a hot-glue gun.

Fit footrest (1) to carpet and bond.

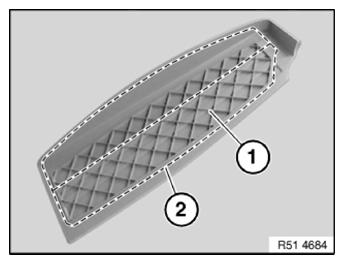

Fig 2: Identifying Footrest And Adhesive Bead Line

Courtesy of BMW OF NORTH AMERICA, INC.
