51 14 111 Replacing model name plate, rear

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This service information describes a general procedure for replacement and new bonding of model designations/lettering using the 335i (F30) as an example.
The procedure can be used for all models, positions and installation locations.
The model designation is attached with adhesive and can not be reused.

Refer to INSTRUCTIONS for securing components with adhesive tape!

CONSUMABLES :

Cutting cord

Masking tape 19 mm or 30 mm

Yellow plastic adhesive tape

Eraser disk

Cleaning agent R2

Replacing model designation

Mark position of model designation (1) with yellow plastic adhesive tape (2).

Coat separating string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1).

Refer to "assembly" steps below for further procedure.

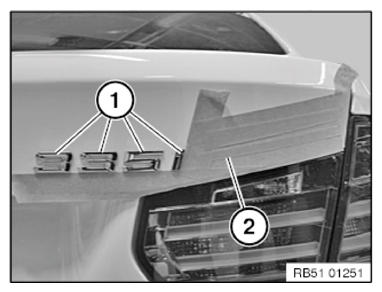

Fig 1: Identifying Model Designation And Plastic Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing model designation (new or newly painted tailgate)

NOTE: Transfer position of model designation (1) from old tailgate by making an adhesive tape template.
For paintwork, keep adhesive tape template up to installation.

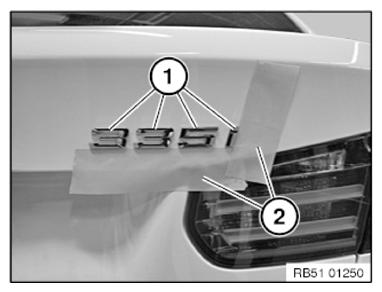

Fig 2: Identifying Model Designation And Masking Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Stick masking tape (2) to nearby reference edges of tailgate and therefore determine position of model designation (1).

Pull off masking tape (2) completely and stick to same reference edges of new/painted tailgate.

Check position, realign if required.

Refer to "assembly" steps below for further procedure.

Assembly:

If required, remove adhesive layer residues with grinding wheel and/or cleaning agent R2.

Clean the adhesive area.

Number and letter combinations (1) of the model designation are not connected to each other and are supplied on a backing film (2).

Remove liner (3) (protective film for bonding surface).

Place model designation at marked position and press down firmly.

Remove backing film (2) and template.

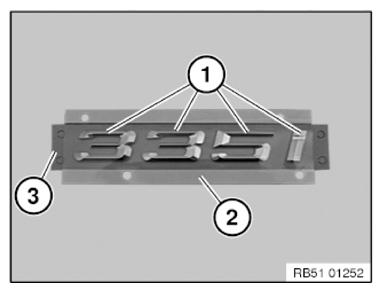

Fig 3: Identifying Backing Film And Liner
