51 14 001 Replacing the front BMW badge
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required
IMPORTANT:
The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.
Tape off working area around the BMW badge (1) with adhesive tape.

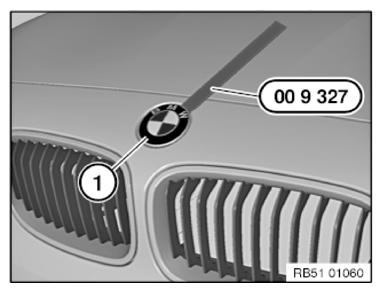

Carefully warm up the BMW badge (1) with a hot air blower (temperature approx. 40 - 55 °C) and lift it out with the special tool 00 9 327 .
Installation note:
Pull liner* off adhesive tape (2).
Position BMW badge (1) over guides (3) and press down firmly.
* Liner is the protective film on a new plate.
