36 11 115 Removing and installing/replacing RDC reception aerial
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove front left UNDERBODY PANELLING

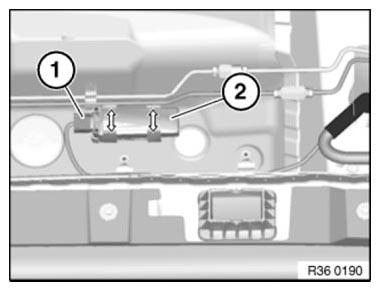

Disconnect plug connection (1).
Gently press retaining tabs apart in direction of arrow and remove RDC aerial (2).
