36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks
- Remove SPARE WHEEL WELL PANEL at rear

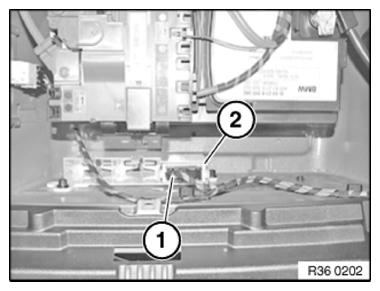

Disconnect plug connection (1).
Unlock equipment holder tabs.
Lift upward to pull out RDC control unit (2).
Replacement
- Carry out programming/encoding
