36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit (LOW COST)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

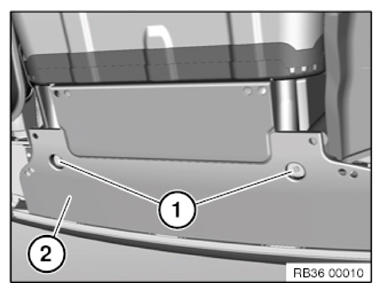

Release screws (1) and press cover (2) slightly to the back.

Fig 1: Identifying Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Image without bumper panel!

Press the bumper panel slightly to the rear.

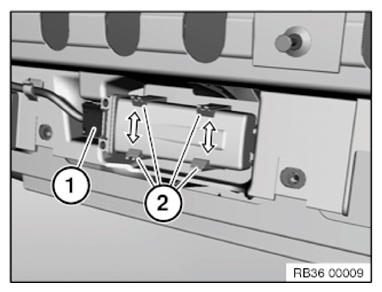

Disconnect plug connection (1).

Press retaining tabs (2) apart as indicated by arrow.

Pull the RDC control unit out.

Fig 2: Pulling RDC Control Unit Out

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Carry out programming/encoding
