12 41 020 Removing and installing/replacing starter (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Switch off ignition.
Disconnect BATTERY NEGATIVE LEAD .
Remove right ENGINE SUPPORT ARM .

Unlock connector (1) and remove.

Slacken nut (2).

Tightening torque 12 42 2AZ .

Detach starter positive cable.

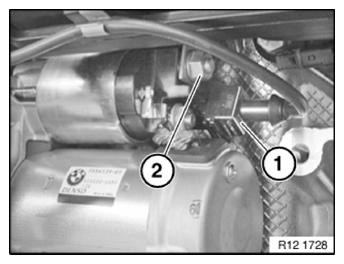

Fig 1: Identifying Connector And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 12 41 1AZ .

Disengage cable (2) from holder.

Pull out starter in direction of travel, feed out and remove.

Installation note:

When replacing the starter, convert cable holder for cable (2).

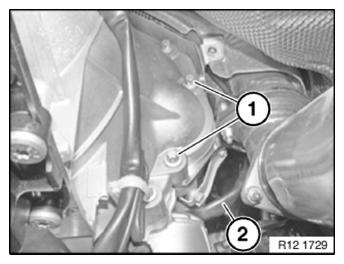

Fig 2: Identifying Screws And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check starter pinion and starter ring gear for damage. If necessary, replace damaged components.

Reassemble the vehicle.

Only during starter replacement and on vehicles with MSA (automatic engine start-stop function)

Use BMW diagnosis system to reset the starter counter.
