12 14 650 Replacing suction pressure sensor on intake plenum (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read out fault memory of DME control unit
Turn off ignition
Remove INTAKE SILENCER HOUSING

Unlock plug (1) and remove.

Release screws and pull suction pressure sensor (2) out of intake plenum.

Tightening torque 13 62 4AZ .

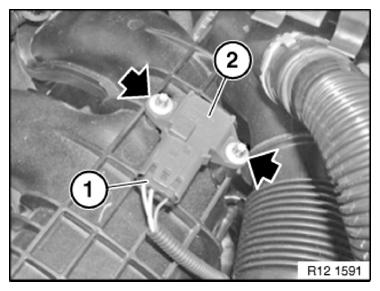

Fig 1: Locating Connector And Screws Of Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring for damage. Replace sealing ring if damaged.

When installing, coat sealing ring with suitable lubricant.

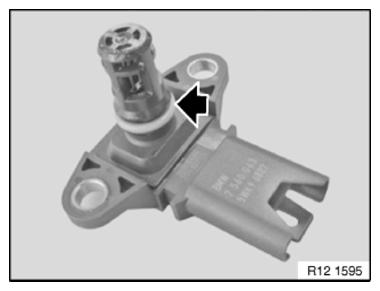

Fig 2: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
Check stored fault message.
Delete fault memory.
