12 14 526 Replacing pulse generator on right inlet camshaft (N63)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder bank 1 to 4)

Necessary preliminary tasks

Read out fault memory of DME control unit; if necessary, work through test schedules
Switch off ignition
Remove right INTAKE FILTER HOUSING

Unlock plug (1) and remove.

Release screw (2).

Tightening torque 13 62 3AZ .

Remove pulse generator (3).

Installation

Replace sealing ring and coat with antiseize agent.

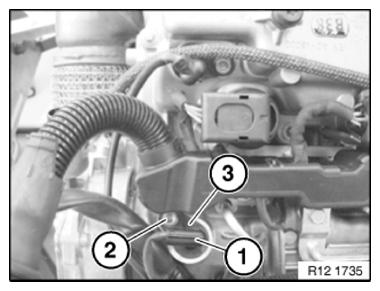

Fig 1: Identifying Screw, Plug And Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
