12 14 523 Replacing pulse sensor on intake camshaft (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Read out fault code memory of the DME control unit.
Switch off ignition
Remove FAN COWL

Unlock connector (1) and remove.

Release screw.

Tightening torque 13 62 1AZ .

Remove pulse sensor (2).

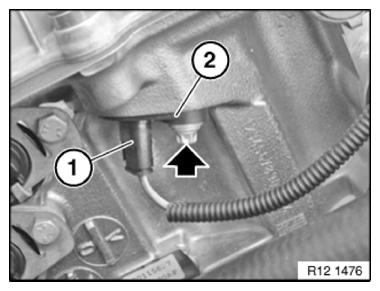

Fig 1: Identifying Pulse Sensor And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Delete fault memory.
