12 14 521 Replacing the pulse sensor on the crankshaft (N63 B40/B44 O 1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Read out the fault memory of the DME control unit.
Switch off ignition.
Remove rear UNDERBODY PROTECTION .

Installation location

On transmission housing at bottom right.

Unlock connector (1) and remove.

Release screw (2).

Tightening torque 13 62 4AZ .

Withdraw pulse generator (3) from transmission housing.

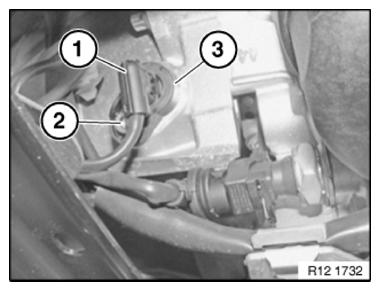

Fig 1: Identifying Connector, Pulse Generator And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
