12 14 521 Replacing crankshaft pulse generator (N63)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work
- Read out the fault memory of the DME control unit.
- Switch off ignition.
- Remove rear UNDERBODY PROTECTION .

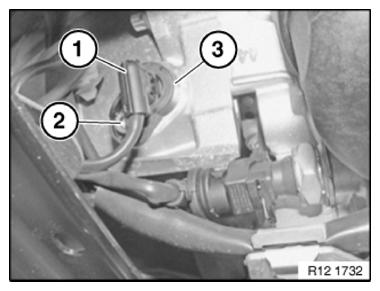

Installation location
On transmission housing at bottom right.
Release connector (1) and remove.
Release screw (2).
Tightening torque 13 62 4AZ .
Withdraw pulse generator (3) from transmission housing.
Installation note:
Delete fault memory.
