64 22 190 Removing and installing/renewing rear compartment fresh-air grille (Basic A/C system)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Installation:
- Remove REAR CENTER CONSOLE TRIM
NOTE:

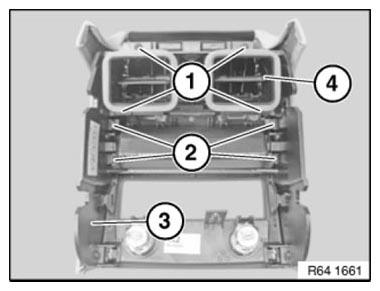

Example graphic on the F01.
Release screws (1).
Snap out retainers (2) and press out fresh-air grille (4) towards front.
Remove fresh-air grille (4) from center console trim (3).
Installation:
Retaining lugs and retainers must be correctly seated in associated guides and must not be damaged.
