64 11 943 Replacing evaporator temperature sensor
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove trim panel for pedal assembly . See 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or 51 45 184 REMOVING AND INSTALLING (REPLACING) TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .
NOTE:

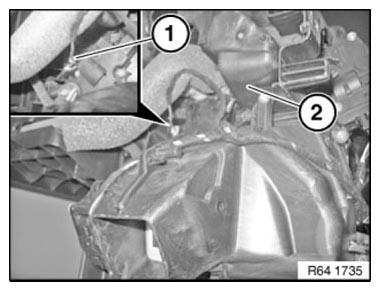

For purposes of clarity, picture shows heating and air-conditioning unit removed.
Disconnect plug connection (1) from evaporator temperature sensor.
Pull evaporator temperature sensor with flat-nose pliers out of heating and air-conditioning unit housing (1).
