64 11 902 Replacing interior temperature sensor blower (A/C control panel)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks
- Remove RADIO AND IHKA CONTROLS

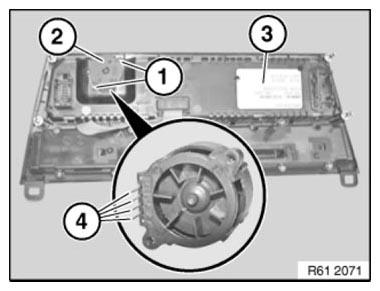

Release screws (1).
Tightening torque 61 31 2AZ .
NOTE:
Use special tool 00 9 450
to tighten screws.
Remove fan (2) from IHKA controls (3).
Installation note:
Make sure pins (4) are correctly located on fan (2).
