64 11 889 Replacing interior temperature sensor blower (rear air conditioning control unit)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary tasks
- Remove REAR CENTER CONSOLE TRIM

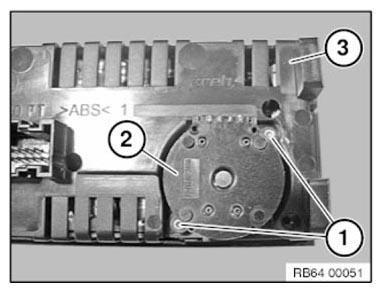

Release screws (1).
Tightening torque 61 31 2AZ .
Remove fan (2) from IHKA controls (3).
Installation note:
Use special tool 00 9 450 to tighten screws.
Make sure pins (4) are correctly located on fan (2).
