64 11 879 Replace control panel for heater/air conditioning system
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic discharge
(ESD protection).
IMPORTANT:
Retrofitting must only be done in the supplied installation cassettes.
Use of supplied gloves is mandatory.
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or contaminate the display area.
Use of supplied gloves is mandatory.
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or contaminate the display area.
Necessary preliminary work
- Remove RADIO AND IHKA CONTROLS

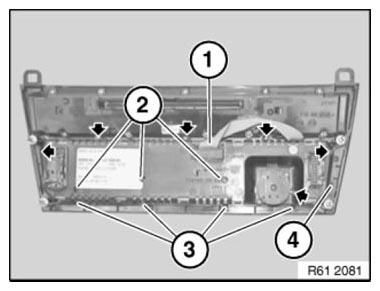

Disconnect plug connection (1).
Release short screw.
Tightening torque 61 31 2AZ .
Release long screws (2).
Tightening torque 61 31 2AZ .
Carefully unlock clamps (3).
Pull up and remove IHKA controls (4).
Installation note:
Assign buttons of IHKA controls depending on equipment.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
