64 11 865 Replacing actuator drive for recirculated air flap

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

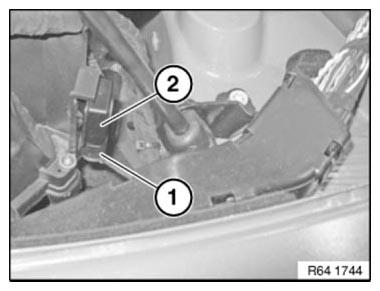

Unlock plug connection (1) on automatic air recirculation control sensor (2) and disconnect.

Fig 1: Identifying Plug Connection On Automatic Air Recirculation Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

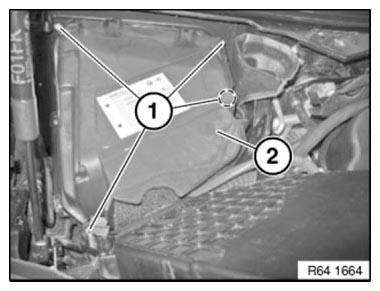

Release screws (1) on blower housing cover (2).

Lift out blower housing cover.

Fig 2: Identifying Screws On Blower Housing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

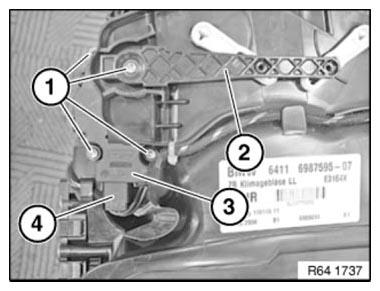

Release screws (1).

Unclip relay lever (2) with a suitable tool.

Remove actuator drive (3).

Unlock plug connection (4) and disconnect.

Fig 3: Identifying Relay Lever, Actuator Drive, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be readdressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Readdress flap motors
