64 11 532 Replacing heat exchanger (heating and air-conditioning unit removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 030

Unclip deflection arm (1) from angle positioning lever (2).

Installation note:

Deflection arm (1) must snap audibly into place!

Fig 1: Identifying Deflection Arm From Angle Positioning Lever

G06886243

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unlock and disconnect plug connections on upper distributor housing (2).

Remove upper distributor housing (2).

Installation note:

Make sure filter housing guide lugs (3) are correctly seated in associated guide tabs on upper distributor housing (2).

Fig 2: Identifying Upper Distributor Housing And Screws

G06886244

Courtesy of BMW OF NORTH AMERICA, INC.

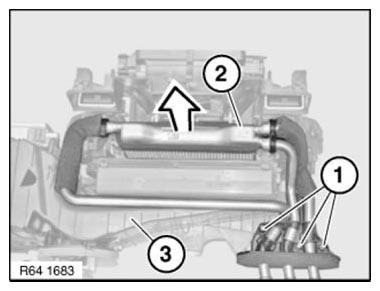

Release screws (1).

Remove heat exchanger (2) in direction of arrow from filter housing (3).

Installation note:

Heat exchanger must be pushed correctly into designated guides on filter housing (3).

Fig 3: Removing Heat Exchanger From Filter Housing

G06886248

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

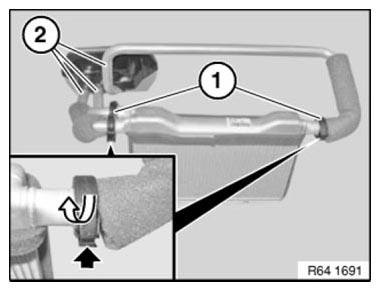

Open pipe clamps (1) with a suitable tool in direction of arrow.

Remove pipes (2).

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.

Fig 4: Removing Pipe Clamps

G06886249

Courtesy of BMW OF NORTH AMERICA, INC.
