64 11 326 Replacing the button caps of the heating and air conditioning system control panel

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

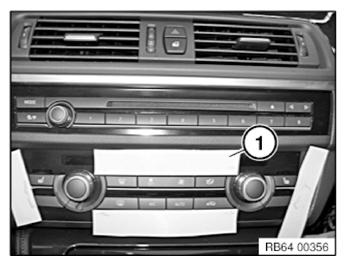

Tape area (1) around the button caps with adhesive tape.

Fig 1: Identifying Tape Area Around Button Caps With Adhesive Tape

G09881557

Courtesy of BMW OF NORTH AMERICA, INC.

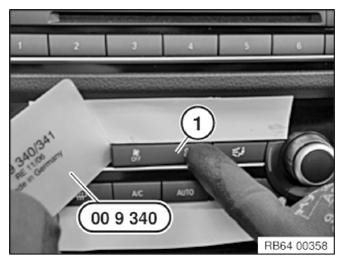

Press blower rocker switch (1) on one side and pry it off on the other side with special tool 00 9 340 .

Fig 2: Identifying Blower Rocker Switch

G09881558

Courtesy of BMW OF NORTH AMERICA, INC.

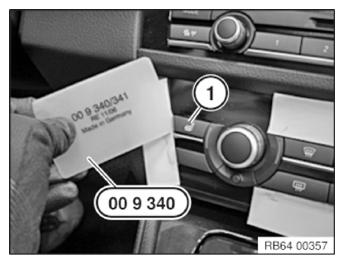

Pry off remaining button caps (1) with special tool 00 9 340 .

Fig 3: Prying Off Remaining Button Caps Using Special Tool 00 9 340

G09881559

Courtesy of BMW OF NORTH AMERICA, INC.

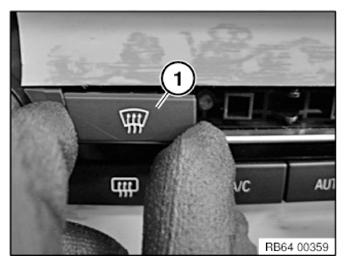

Clip in button caps (1) into operating unit.

Remove adhesive tape.

Fig 4: Clipping Button Caps Into Operating Unit

G09881560

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
