64 11 263 Removing and installing/replacing rear cabin fan
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove complete CENTER CONSOLE

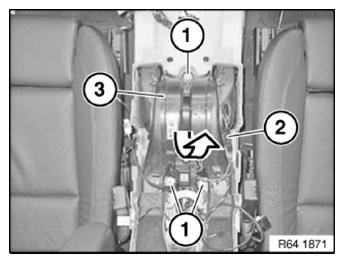

Release screws (1).
Unfasten plug connection (2) and disconnect.
Remove fan (3) in direction of arrow.
Installation:
Make sure fan is correctly seated on air ducts.
Replacement
Remove REAR COMPARTMENT BLOWER CONTROLLER .
