34 11 552 Overhauling left or right front brake caliper (brake caliper removed)

Special tools required:

• 00 9 316

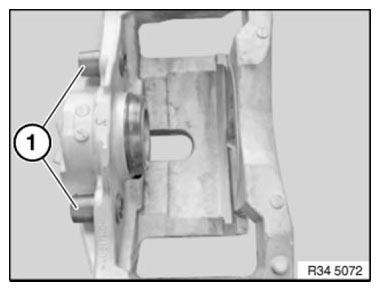

Check guide sleeves (1). If necessary, fit repair kit guide sleeve.

Fig 1: Identifying Guide Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

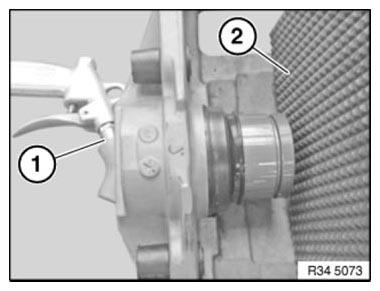

Carefully force piston out through connecting bore (1) with compressed air.

To protect piston, place a protective plate (2) (e.g. hard wood or hardened felt) in caliper recess.

Do not grip piston with fingers - pinch hazard!

Fig 2: Identifying Connecting Bore And Protective Plate

Courtesy of BMW OF NORTH AMERICA, INC.

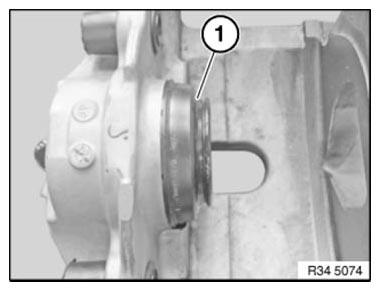

Press off dust boot (1).

Fig 3: Identifying Dust Boot

Courtesy of BMW OF NORTH AMERICA, INC.

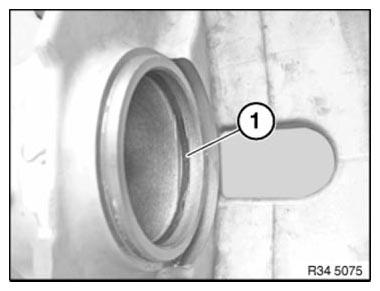

Carefully remove sealing ring (1) special tool 00 9 316 .

Clean cylinder bores and parts with spirits and dry with compressed air.

Thoroughly inspect cylinder bore, piston and flange surfaces for damage. Machining of cylinders and pistons is not permitted.

Install new sealing ring.

Installation note:

Apply a light coat of Ate brake cylinder paste to cylinder bore, piston and sealing ring.

Fig 4: Identifying Cylinder Bore Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

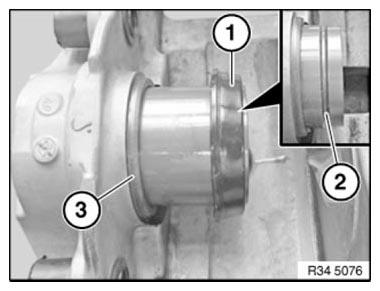

Fit dust boot (1) in annular groove of piston (2).

Press piston into cylinder bore.

Evenly press dust boot (1) onto brake caliper housing (3) to the limit position.

Installation note:

The area between the dust boot and the brake caliper housing (3) must be kept dry. It must not come into contact with Ate brake cylinder paste or brake fluid so as to ensure that the dust boot is perfectly fitted.

Fig 5: Identifying Dust Boot, Piston And Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.
