34 35 001 Replacing a brake pad sensor (front)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If an already sanded brake pad wear sensor has to be replaced although the MINIMUM BRAKE PAD THICKNESS has not yet been reached, it is necessary to file down the new sliding contact with a file to the same length as the sanded sliding contact.

Necessary preliminary tasks:

Remove front left WHEEL

Open housing cover.

Disconnect plug connection (1).

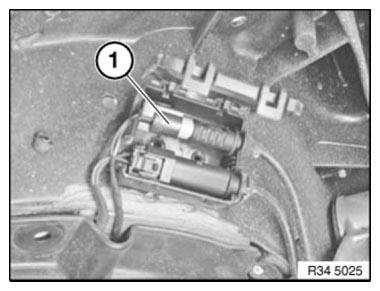

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1) along line.

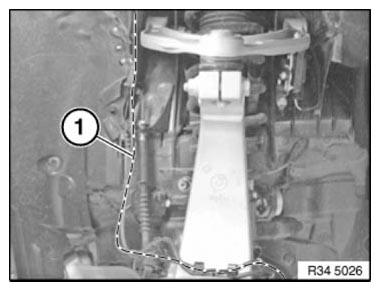

Fig 2: Identifying Brake Pad Sensor Line

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage line from brake pad wear sensor from bracket (1).

Pull brake pad wear sensor (2) in direction of arrow out of brake pad.

Installation note:

Make sure brake pad wear sensor (2) is correctly seated in brake pad and bracket (1).

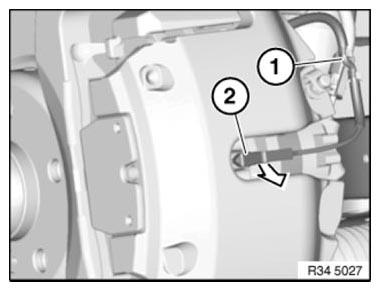

Fig 3: Identifying Brake Pad Wear Sensor And Line Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
