34 00 x01 Guideline for applying brake pad paste on brake pads and brake anchor plate

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851 (3 g) or 83 19 2 158 852 (100 g).
Spread brake pad paste onto the marked surfaces using a brush!

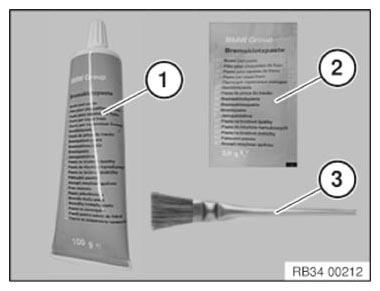

(1) Brake pad paste 100 gr. BMW part no. 83 19 2 158 852
(2) Brake pad paste 3 gr. BMW part no. 83 19 2 158 851
(3) Brush for spreading brake pad paste over the marked areas.

Fig 1: Identifying Brake Pad Paste And Brush
Courtesy of BMW OF NORTH AMERICA, INC.

Brake IPS (CBI) 1-piston floating caliper brake (model ranges: 1-Series, 3-Series, 4-Series, X3)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 2: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 3: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing

Courtesy of BMW OF NORTH AMERICA, INC.

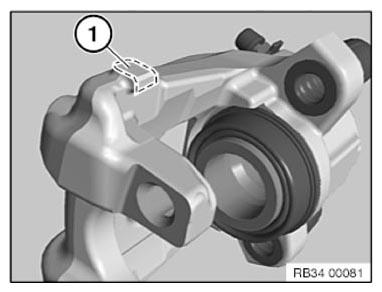

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 4: Identifying Brake Caliper Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

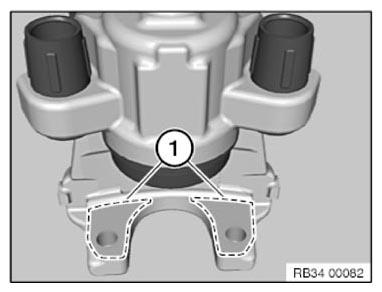

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 5: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1 and 2) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1 and 2) with brake cleaner and apply a thin coating of brake pad paste.

Fig 6: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

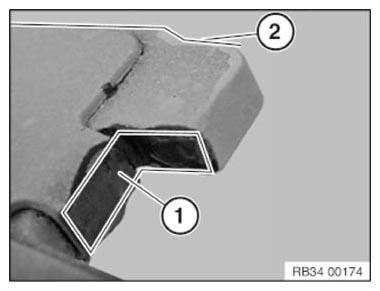

Apply a thin coating of brake pad paste to T-head of inner brake pad in area (1) and (2).

Fig 7: Identifying Areas On T-Head Of Inner Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

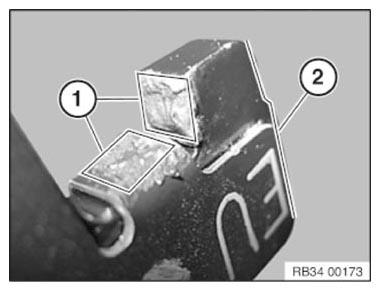

Apply a thin coating of brake pad paste to T-head of outer brake pad in area (1) and (2).

Fig 8: Identifying Areas On T-Head Of Outer Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 1-piston floating caliper brake (model ranges: 5-Series, 6-Series, 7-Series, 8-Series, X1, X3, X5, Z4, RR)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 9: Identifying Brake Piston Contact Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 10: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 11: Identifying Contact Surface Of Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (1) for the brake pads on the brake caliper mounting bracket. Clean guide surfaces (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 12: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 14: Identifying Areas On T-Head Of Inner Brake - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 15: Identifying Areas On T-Head Of Outer Brake - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Brake FN (Continental Teves) 2-piston floating caliper brake (model ranges: 5-Series, 6-Series, 7-Series, 8-Series, X5, RR)

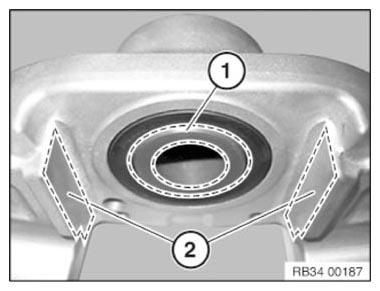

Clean contact surface (2) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 16: Identifying Contact Surface Of Brake Piston - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surfaces (1) of T-heads/brake caliper housing with brake cleaner and apply a thin coating of brake pad paste.

Fig 17: Identifying Contact Surfaces Of T-Heads/Brake Caliper Housing - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 18: Identifying Contact Surface Of Brake Caliper - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

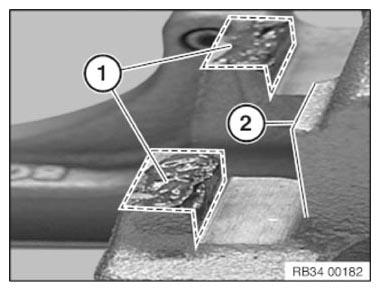

Fig 19: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 20: Identifying Guide Surfaces For Brake Pads On Brake Caliper Mounting Bracket - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the inner brake pad with brake pad paste in area (1 and 2).

Fig 21: Identifying Areas On T-Head Of Inner Brake - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the T-head of the outer brake pad with brake pad paste in area (1 and 2).

Fig 22: Identifying Areas On T-Head Of Outer Brake - Continental Teves 2-Piston Floating Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Brake Collette (TRW) 1-piston brake caliper (model ranges: MINI, 1-Series, 5-Series, 6-Series, Z4)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Fig 23: Identifying Contact Surface Of Brake Piston - TRW 1-Piston Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Clean contact surface (1) of brake caliper with brake cleaner and apply a thin coating of brake pad paste.

Fig 24: Identifying Contact Surface Of Brake Caliper - TRW 1-Piston Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

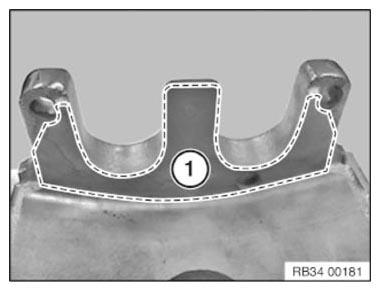

So as not to damage the surface coating, if possible do not mechanically clean the guide surface (1) for the brake pads on the brake caliper mounting bracket. Clean guide surface (1) with brake cleaner and apply a thin coating of brake pad paste.

Fig 25: Identifying Guide Surface For Brake Pads On Brake Caliper Mounting Bracket - TRW 1-Piston Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

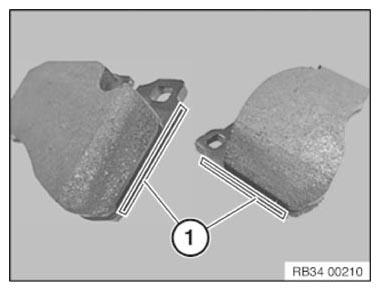

Apply a thin coating of brake pad paste to both sides of T-head of brake pad in area (1).

Fig 26: Identifying Area On Side Of T-Head Of Brake Pad - TRW 1-Piston Brake Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

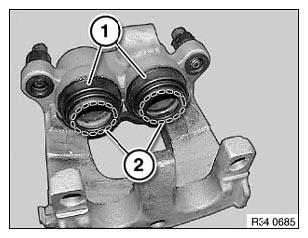

Brake P 4.40 (Brembo) 4-piston fixed caliper brake (model ranges: MINI, 1-Series, 3-Series, 4-Series, 5-Series, 6-Series, 7-Series, 8-Series, X5, RR)

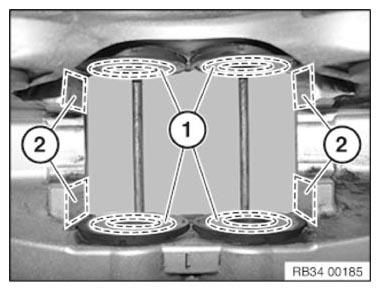

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces (2) for the brake pads on the brake caliper mounting bracket. Clean guide surface (2) with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 27: Identifying Contact Surface And Guide Surfaces - Brembo 4-Piston Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 28: Identifying Sides Of Contact Surface - Brembo 4-Piston Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

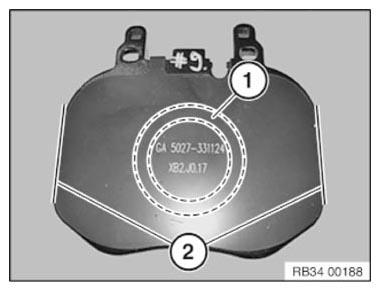

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 29: Identifying Brake Pad Contact Surface - Brembo Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Brake P 4.40 (Brembo) 2-piston fixed caliper brake (model ranges: 1-Series, 3-Series)

Clean contact surface (1) of brake piston with brake cleaner and apply a thin coating of brake pad paste.

Clean both inner and outer guide surfaces (2) and apply a thin coating of brake pad paste.

Fig 30: Identifying Contact Surface And Guide Surfaces - Brembo 2-Piston Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

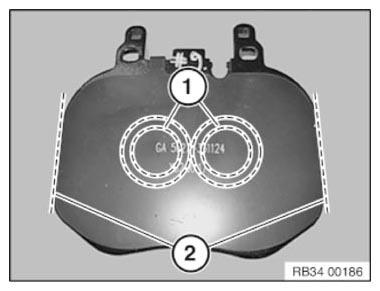

Lightly coat both sides of the contact surface in area (1 and 2) with brake pad paste.

Fig 31: Identifying Sides Of Contact Surface - Brembo 2-Piston Fixed Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Lightly coat the brake pad contact surface on both sides in area (1) with brake pad paste.

Fig 32: Identifying Brake Pad Contact Surface - Brembo Fixed Caliper
