34 32 980 Replacing rear left or right brake hose

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Read and comply with GENERAL INFORMATION .
After completing work: BLEED BRAKING SYSTEM

Press clutch pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

Fig 1: Securing Brake Pedal With Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece can not rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation :

Tightening torque 34 32 1AZ .

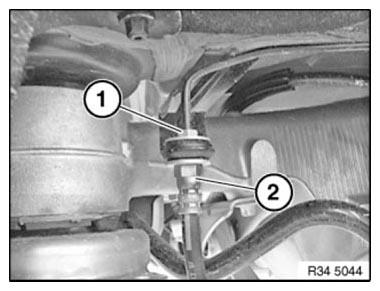

Fig 2: Identifying Brake Hose And Brake Line

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (1).

Installation :

First tighten brake hose on brake caliper.

Tightening torque 34 32 3AZ .

IMPORTANT: Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

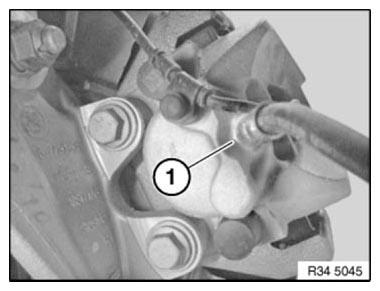

Fig 3: Identifying Brake Hose

Courtesy of BMW OF NORTH AMERICA, INC.
