34 32 881 Replacing front left or right brake hose
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WHEEL
- Read and comply with GENERAL INFORMATION .
After completing repair work: BLEED BRAKING SYSTEM
Press brake pedal down to floor and secure with pedal support.
NOTE:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

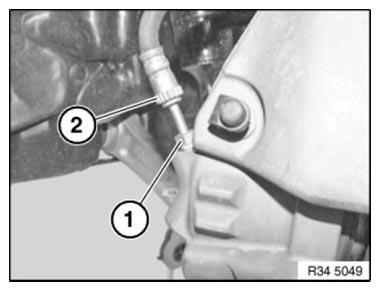

Detach brake hose (1) from brake caliper.
If necessary, grip at knurling (2).
Installation note:
Tightening torque 34 32 2AZ .

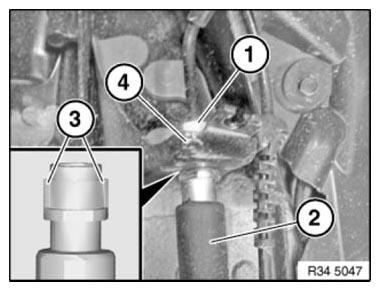

Release retaining screw (1). If necessary, grip at square head.
Installation note:
Position guides (3) correctly in holder (4).
Tightening torque 34 32 1AZ .

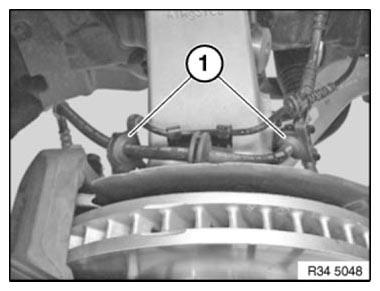

Release brake hose from holders (1).
IMPORTANT:
Observe assembly sequence:
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
- Fasten brake hose in holders (1).
- Move wheels into straight-ahead position.
- Fasten brake hose at pipe/brake hose connection.
- Fasten brake hose at brake caliper.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
