13 71 195 Removing and installing/replacing right clean air pipe \PREMIUM

Overview of Activities

Preprocesses

1. Remove acoustic cover
2. Remove left intake silencer housing

   Keyprocesses

3. Remove right clean air pipe
4. Install right clean air pipe

   Postprocesses

5. Install left intake silencer housing
6. Install acoustic cover

Additional Information

Overview of Tightening Torques

Preprocesses

1. Remove acoustic cover
   • Raise acoustic cover (1).
   • Remove acoustic cover (1) in the direction of travel.
     Fig 1: Identifying Acoustic Cover

     Courtesy of BMW OF NORTH AMERICA, INC.

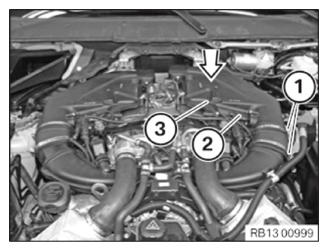

2. Remove left intake silencer housing
   • Loosen clamps (1).
   • Disconnect connector (2) at the hot film air mass meter.
   • Release clamp (3).
   • Pull off intake silencer housing from the top.
     Fig 2: Identifying Connector And Clamps

     Courtesy of BMW OF NORTH AMERICA, INC.

     Keyprocesses

3. Remove right clean air pipe

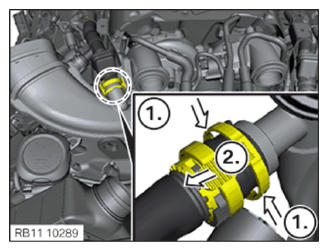

   • Version 1:
   • 1. Unlock the retainer.
     2. At the same time, pull off connecting line from clean air pipe.
        Fig 3: Identifying Retainer And Clean Air Pipe

        Courtesy of BMW OF NORTH AMERICA, INC.

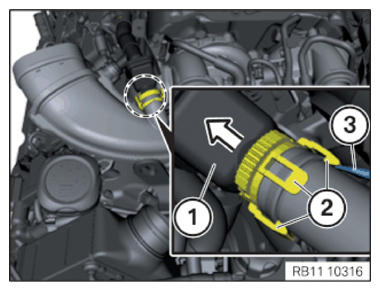

   • Version 2:
   • Lightly pull line (1) in the direction of the arrow.

     Simultaneously, unlock the latch mechanisms (2) one after the other using a screwdriver (3).

     Pull off connecting line from clean air pipe.

     Fig 4: Identifying Latch Mechanism, Line, And Screwdriver

     Courtesy of BMW OF NORTH AMERICA, INC.
   • Release screw (1).
   • Pull clean air pipe (2) from exhaust turbocharger.
     Fig 5: Identifying Clean Air Pipe And Screw

     Courtesy of BMW OF NORTH AMERICA, INC.
4. Install right clean air pipe
   • Check the gasket on the clean air pipe.
   • Replace faulty gasket.
   • Position clean air pipe (2) on exhaust turbocharger.
   • Tighten down screw (1).
     TIGHTENING TORQUE SPECIFICATIONS



     Clean-air pipe to turbocharger
     M6	10 Nm

     Fig 6: Identifying Clean Air Pipe And Screw

     Courtesy of BMW OF NORTH AMERICA, INC.
   • Version 1:
     NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
   • Attach connecting line to clean air pipe.
     Fig 7: Attaching Connecting Line To Clean Air Pipe

     Courtesy of BMW OF NORTH AMERICA, INC.
   • Version 2:
     NOTE: Ensure correct locking of all the retaining lugs. Retaining lugs must audibly snap into place.
   • Attach connecting line (1) with the latch mechanisms (2) to clean air pipe.
     Fig 8: Attaching Connecting Line With Latch Mechanisms To Clean Air Pipe

     Courtesy of BMW OF NORTH AMERICA, INC.

     Postprocesses

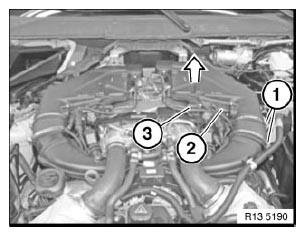

5. Install left intake silencer housing
   • Connect intake silencer housing.
   • Attach clamp (3).
   • Connect connector (2) on the hot film air mass meter.
   • Attach clamps (1).
     Fig 9: Identifying Connector And Clamps

     Courtesy of BMW OF NORTH AMERICA, INC.
6. Install acoustic cover
   NOTE: Ensure correct fit!
   • Insert acoustic cover (1) into existing rubber guides.
     Fig 10: Identifying Acoustic Cover

     Courtesy of BMW OF NORTH AMERICA, INC.
