17 11 000 Removing and installing radiator (N63 B40/B44 O 0/1)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this repair work after engine has cooled down.

IMPORTANT: Wear safety goggles and protective gloves.

Necessary preliminary tasks:

Remove fan cowl. See FAN COWL (N55) , FAN COWL (N63) , or FAN COWL (N63O1) .
Drain coolant. See DRAINING AND ADDING COOLANT (N63) or DRAIN AND TOP UP COOLANT (N63O1) .
Unlock and detach coolant hoses on radiator.

Release screws (1) on left and right from cover (3).

Tightening torque 17 10 1AZ .

Release screws (2) behind sealing lip.

Tightening torque 17 10 1AZ .

Lift out cover (3).

NOTE: (Images show N54, procedure identical on N63)

Fig 1: Identifying Cover And Screws

G06889272

Courtesy of BMW OF NORTH AMERICA, INC.

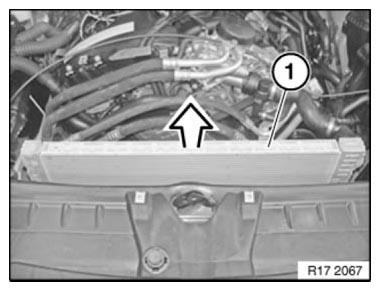

Remove radiator (1) towards top.

NOTE: (Images show N54, procedure identical on N63)

Fig 2: Removing Radiator

G06889273

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

FILL THE COOLING SYSTEM .

Visual inspection of cooling system for tightness.
