61 61 270 Removing and installing or replacing console for windscreen washer system complete with motor
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
IMPORTANT:
Before installing the wiper arms, allow wiper motor to run into rest position.
IMPORTANT:
Emergency operation - danger of injury! Disconnect NEGATIVE BATTERY CABLE .
Necessary preliminary tasks:
- Remove COWL PANEL COVER .

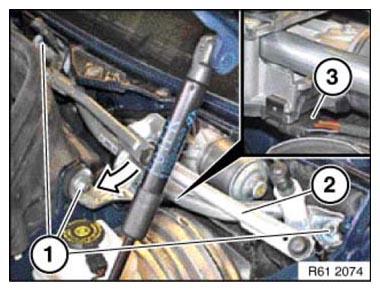

Release screws (1).
Tightening torque, 61 61 1AZ .
Remove console for windscreen wiper system (2) in direction of arrow and disconnect plug connection (3).
Installation note:

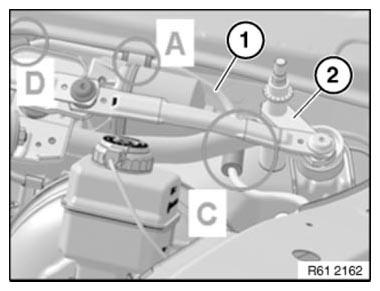

Vacuum line (1) must not be trapped by windscreen washer system (2).
Contact with vacuum line (1) is only permitted at the positions (A/D/C) specifically designed for this purpose.
NOTE:
As of 09/2009, an additional holder (1) is installed for the vacuum line (2).

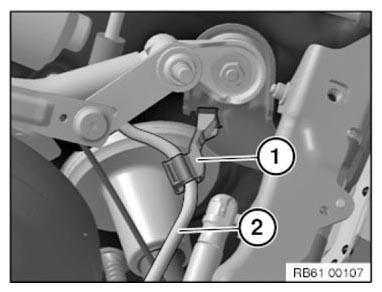

Installation note:
Make sure the vacuum line (2) is correctly seated in the holder (1)!
IMPORTANT:
After installing, check freedom of movement between wiper kinematics and vacuum line!
