61 61 131 Replacing both wiper blades (Bosch AeroTwin)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Make sure the wiper arm does not contact the windscreen without its wiper blade.

Necessary preliminary tasks: Remove both WIPER BLADES .

Removal:

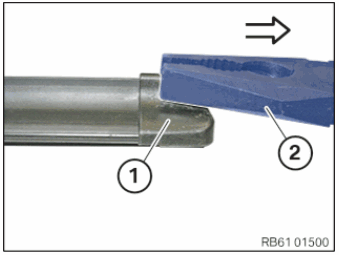

Pull off both sealing caps (1) using a suitable tool (2).

Fig 1: Pulling Off Both Sealing Caps

G00554303

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not excessively bend the retaining tab (risk of breakage)!

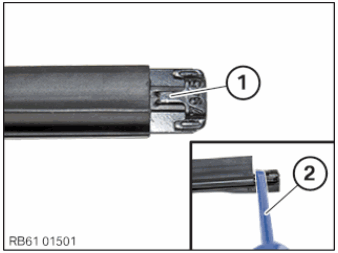

Slightly bend retaining tab (1) upwards using a suitable tool (2) until the wiper blade is easily accessible.

Fig 2: Bending Retaining Tab Slightly Upwards Using Suitable Tool

G00554304

Courtesy of BMW OF NORTH AMERICA, INC.

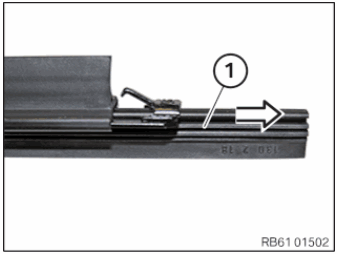

Pull out wiper blade (1) in the direction of the arrow.

Fig 3: Pulling Out Wiper Blade

G00554305

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

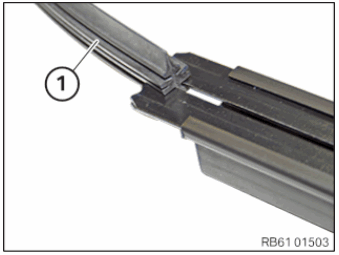

Insert wiper blade (1).

Fig 4: Inserting Wiper Blade

G00554306

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position wiper blade (1) flush.

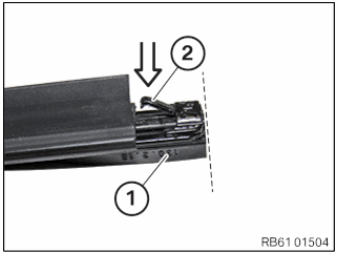

Bend retaining tabs (2) in the direction of the arrow using a suitable tool.

Secure wiper blade (1).

Fig 5: Bending Retaining Tabs

G00554307

Courtesy of BMW OF NORTH AMERICA, INC.

Push on sealing caps (1) until they noticeably engage.

Fig 6: Pushing Sealing Caps On Until They Engage

G00554308

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work: Install both WIPER BLADES .
