61 71 030 Removing and installing/renewing all washer jets of windscreen washer system

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Turn clamp (3) in direction of arrow and washer fluid line (2) in direction of arrow.

Disconnect plug connection (1) and remove from holder (4).

Fig 1: Turning Clamp And Washer Fluid Line

Courtesy of BMW OF NORTH AMERICA, INC.

Press all washer jets (1) in direction of arrow upwards and remove.

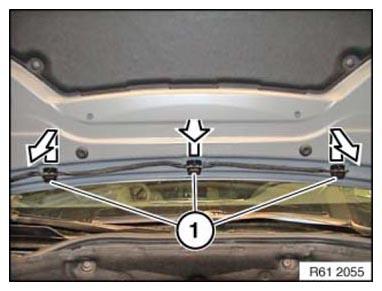

Fig 2: Pressing Washer Jets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be damaged.
Check ADJUSTMENT OF WASHER JETS and correct if necessary.
Filling capacity: 5.0 Liters

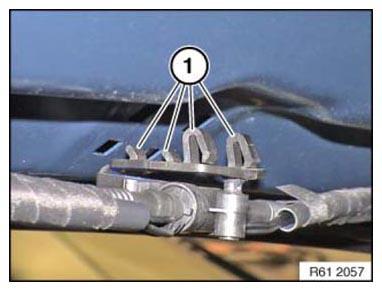

Fig 3: Identifying Washer Jets Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
