61 31 704 Replacing center console operating facility (from 07/2012)

Necessary preliminary tasks:

• Remove CENTER CONSOLE OPERATING UNIT

Graphic shows repair kit for center console operating facility  .

Function keys (4) absolutely must be clipped to the correct position.

Incorrect assignment may result in damage to the operating element (1) or functional impairment.

Populate symbol elements (2) and function keys (4) on operating facility (1) according to the design of the used part, no blind caps are installed, rather blocking elements (5) are placed under the corresponding function keys (4).

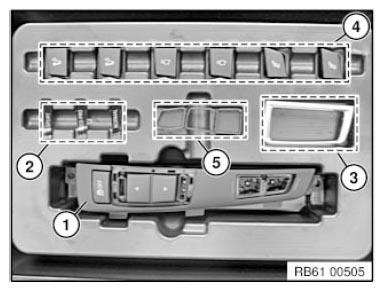

Fig 1: Identifying Operating Element, Symbol Elements, Function Keys And Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Insert operating element (1) with symbol elements (2) and chrome frame (3).

Insert operating element (1) with function key (4) and, if necessary, blocking elements (5).

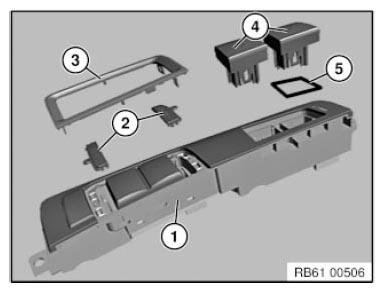

Fig 2: Identifying Operating Element, Chrome Frame, Function Key And Blocking Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Removing function key from operating element (e.g. if inserted incorrectly):

Lever out function key (1) with special tool 00 9 321 out of operating facility (2).

Check locking lugs on function key (1), these must not be damaged.

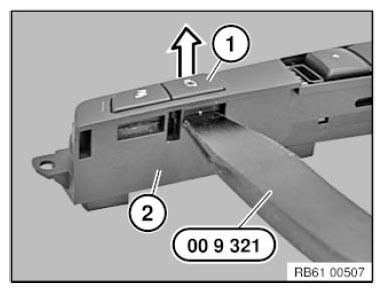

Fig 3: Removing Function Key Out Of Operating Unit Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
