61 31 492 Replacing level switch for windscreen washer system
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WASHER FLUID RESERVOIR

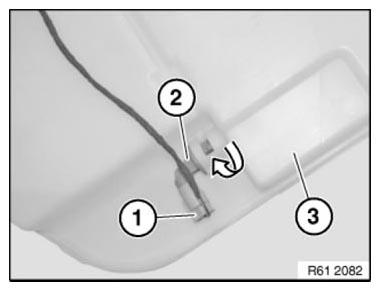

Unfasten plug connection (1) and disconnect.
Turn washer fluid level switch (2) in direction of arrow and pull downwards out of washer fluid reservoir (3).
