61 31 338 Removing and installing/replacing grip cover for gear selector switch (ceramic application, operating elements)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

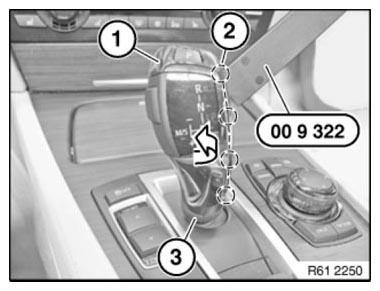

Carefully unclip knob cover (1) 00 9 322 with special tool at points (2) from gear selector switch (3) and remove in direction of arrow.

Fig 1: Removing Knob Cover From Gear Selector Switch

Courtesy of BMW OF NORTH AMERICA, INC.

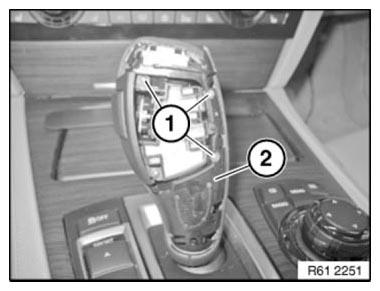

Release screws (1) and remove support (2).

Tightening torque 61 31 4AZ .

Fig 2: Identifying Gear Selector Switch Support And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removed ceramic carrier (2) must not be reused.

Installation note:

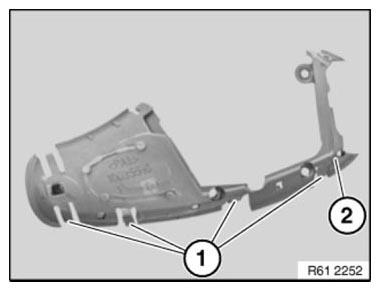

Engagement lugs (1) of ceramic carrier (2) must not be damaged.

Fig 3: Identifying Ceramic Carrier And Engagement Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
