61 31 334 Removing and installing or replacing grip cover for gear selector switch

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322

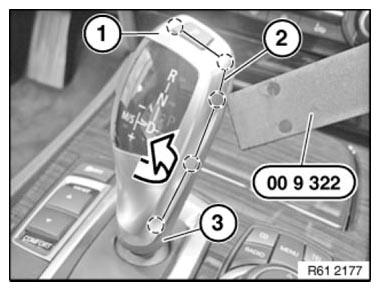

Carefully unclip cover (1) from gear selector switch (3) using special tool 00 9 322 at points (2) and remove in direction of arrow.

Fig 1: Removing Gear Selector Switch Cover Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

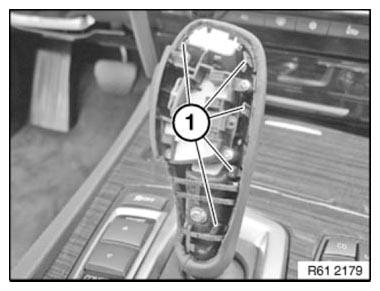

Latch mechanism (1) must not be damaged or missing.

Fig 2: Identifying Gear Selector Switch Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

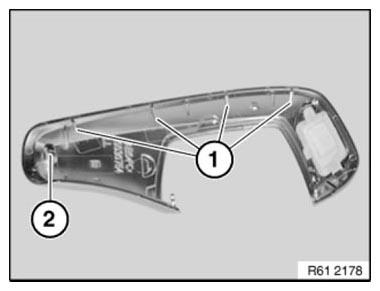

Latch mechanism (1) and guide (2) must not be damaged or missing.

Fig 3: Identifying Gear Selector Switch Latch Mechanism And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
