61 31 172 Removing and installing/replacing switch for electromechanical parking brake
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- DISCONNECT NEGATIVE BATTERY CABLE (to avoid fault memory entries)
- F03 only: Disconnect both battery negative cables
- Remove GEAR SELECTOR SWITCH COVER

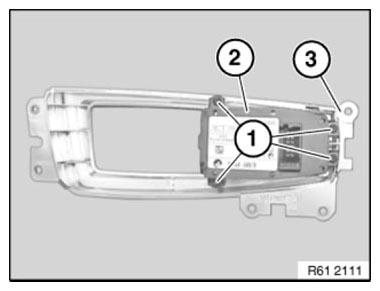

Release screws (1).
Remove switch for electromechanical parking brake (2) from cover for gear selector switch (3).
