61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

Carefully lever out rocker switch (1) using special tool 00 9 317 from the rear door armrest (2).

Unlock and disconnect plug connection behind.

Remove rocker switch (2).

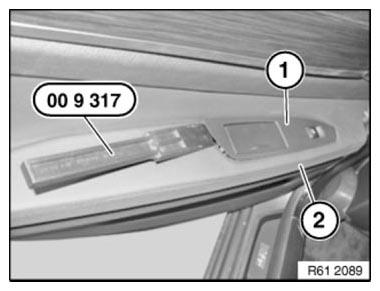

Fig 1: Removing Rocker Switch From Rear Door Armrest Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure latch mechanisms (1) of rocker switch (2) are correctly seated.

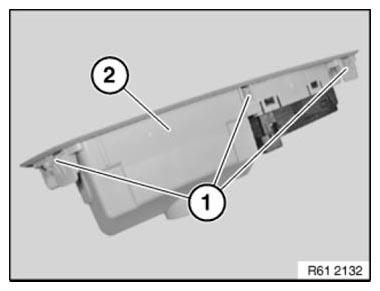

Fig 2: Identifying Latch Mechanisms On Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.
